In the realm of CNC machining, precision, versatility, and efficiency are no longer optional—they’re essential. As parts become more complex and production demands intensify, manufacturers are constantly seeking ways to improve their machining processes without significant overhauls to their existing infrastructure. One of the most effective upgrades available is the integration of a rotary table for machining center operations. This single addition can dramatically expand your CNC capabilities, allowing for increased flexibility, tighter tolerances, and fewer setups per job.
At SilverCNC, we understand that modern machine shops need adaptable solutions to stay competitive. Our high-performance rotary tables for machining centers are engineered to meet the demands of today’s high-precision industries—from aerospace and medical to automotive and mold making. Whether you're running a high-mix, low-volume job shop or a high-throughput production line, adding a rotary table to your machining center unlocks a new dimension of capability.
What is a Rotary Table for a Machining Center?
A rotary table is a precision workholding device used in machining to rotate a workpiece around its axis. When used as a rotary table for machining center, it allows a standard CNC setup to perform multi-side operations without repositioning the part—effectively transforming a static 3-axis machining center into a 4-axis or even 5-axis machine, depending on the configuration.
Rotary tables are typically mounted horizontally or vertically on the worktable of a machining center and are controlled either manually (in older applications) or via CNC interface for automated positioning.
Primary Features Include:
- Rotary motion (A or B axis)
- High clamping force and rigidity
- Precision indexing (as low as 0.001°)
- Heavy part load capacity
- Automatic indexing and brake systems
- Integration with CNC controllers for synchronized motion
By adding this motion control capability, the rotary table enhances the machine's range of motion and unlocks more complex part geometries without manual repositioning or re-fixturing.
Types of Rotary Tables and Their Applications
Different applications call for different rotary table configurations. Some of the most common types include:
1. Manual Rotary Tables
-Used for basic operations in non-CNC environments
-Positioned by hand using an indexing wheel
-Limited to simple tasks such as drilling bolt circles
2. CNC-Driven 4th Axis Rotary Tables
-Adds rotary motion to 3-axis machining centers
-Ideal for multi-face machining, contouring, and indexing
-Controlled directly through the CNC controller

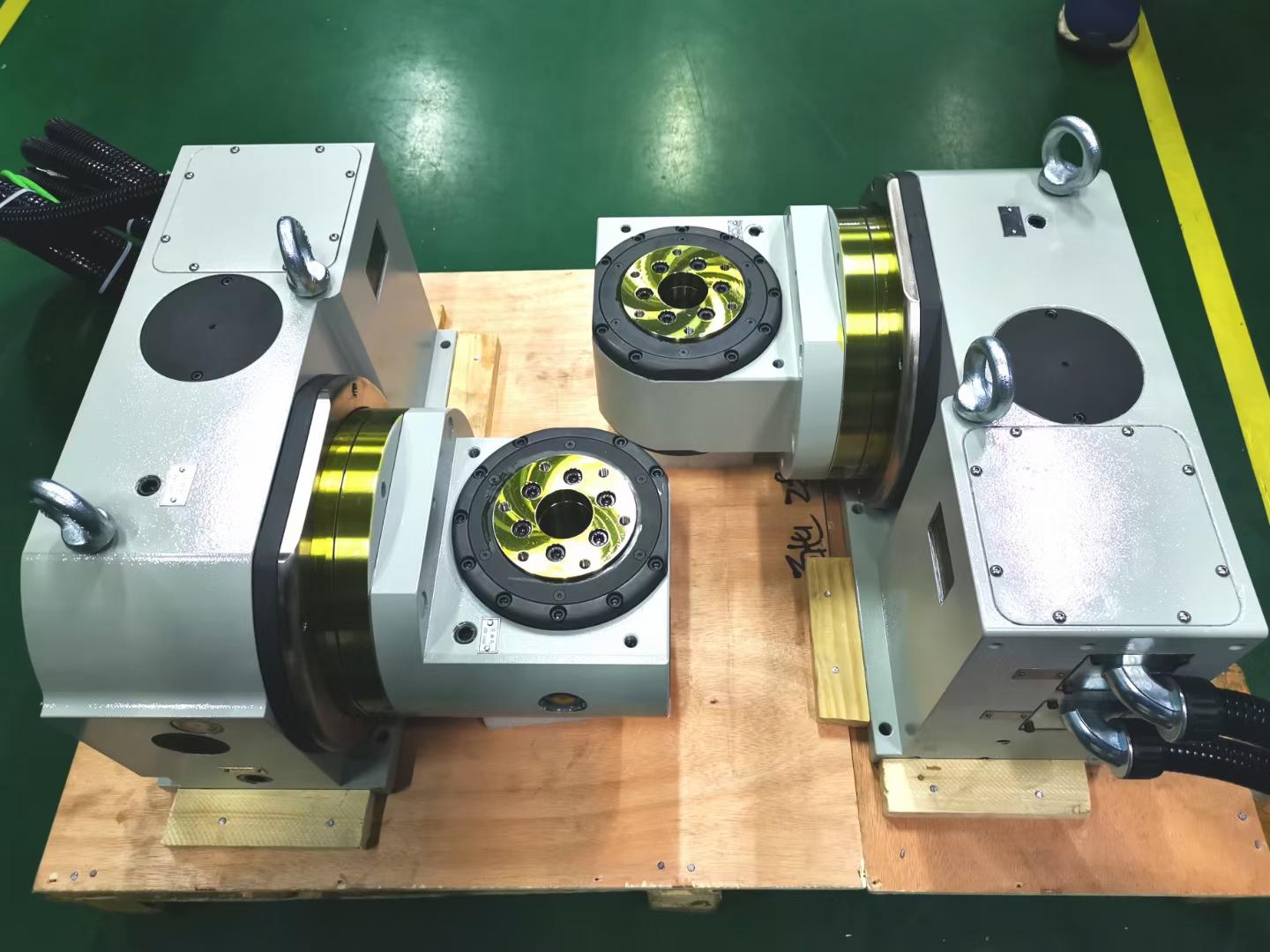

3. Tilting Rotary Tables (5th Axis)
-Offers a second rotary motion, providing B or A axis tilting
-Enables simultaneous 5-axis machining
-Commonly used for complex aerospace or medical parts
4. Built-in vs. Add-on Tables
-Built-in tables are integrated during machine manufacturing
-Add-on rotary tables (such as SilverCNC models) can be retrofitted
-Add-on tables offer cost efficiency and upgrade flexibility
Key Benefits of Using a Rotary Table for Machining Center Operations
Adding a rotary table for machining center isn’t just an upgrade—it’s a transformation of capability. Here are the most impactful benefits of integrating a rotary system:
✅ 1. Reduced Setups, Increased Accuracy
Without a rotary table, machining multiple faces of a workpiece requires multiple setups—each introducing opportunities for error. A rotary table allows access to all sides in a single setup, improving part consistency and saving time.
✅ 2. Expanded Geometrical Freedom
Rotary tables enable complex arc machining, helical interpolation, cylindrical features, and intricate contours otherwise unachievable on standard 3-axis machines.
✅ 3. Boosted Productivity
Fewer setups mean fewer interruptions. Automated positioning and reduced operator intervention allow for faster machining cycles and quicker job turnover—especially beneficial in high-mix, low-volume environments.
✅ 4. Enhanced Part Quality
Better angular positioning and tighter tolerances lead to higher-quality parts with improved surface finishes. This is essential for industries where every micron counts.
✅ 5. Increased Machine Capability Without Massive Cost
Upgrading to a full 5-axis machining center can be extremely costly. Adding a high-quality rotary table for machining center can offer many of the same benefits at a fraction of the price.
Industry Applications: Where Rotary Tables Deliver Results
Rotary tables are used across a wide range of industries and applications. Here’s how different sectors benefit:
Aerospace
-Multi-sided machining of aluminum and titanium parts
-Complex contouring, trimming, and drilling
Automotive
-Engine components, gears, and multi-feature parts
-High-volume production with reduced downtime
Medical Devices
-High-precision implants, prosthetics, and surgical tools
-5-axis accessibility for minimized finish work
Tool & Die
-Core/cavity machining in mold manufacturing
-Blended radii and deep pocketing
General Manufacturing
-Versatile use for small-to-medium workpieces
-Easy retrofit to existing 3-axis CNCs
Also Read: Applications of CNC Rotary Tables in Various Industries [Infographic]
How to Choose the Right Rotary Table for Your Machining Center
When selecting a rotary table for a machining center, consider the following:
1. Size and Load Capacity
Ensure that the table can support the size, shape, and weight of your workpieces without sacrificing rigidity or performance.
2. Rotary Accuracy and Repeatability
Look for high indexing accuracy (±0.001° or better) and repeatable positioning to ensure dimensional accuracy in multi-sided machining.
3. Speed and Torque
Match the torque and speed requirements to your material and application. High-speed tables may reduce machining times, but must still maintain rigidity under load.
4. Mounting Orientation
Depending on your application, choose between vertical, horizontal, or tilting axis mounting solutions. SilverCNC offers flexible configurations to suit various setups.
5. Control System Compatibility
Make sure the table can communicate with your machine’s CNC controller via protocols such as FANUC, Siemens, Mitsubishi, etc.
6. Support and Serviceability
Reliability and after-sales support are crucial. A good rotary table is a long-term investment that should last years with proper maintenance.
Why Manufacturers Choose SilverCNC Rotary Tables
At SilverCNC, we’ve engineered our rotary tables to meet the demanding requirements of modern machining centers. Here’s why our customers trust us:
✅ High-precision worm gear or direct-drive systems
✅ Hardened, ground components for long-lasting accuracy
✅ Advanced sealing systems for coolant and chip resistance
✅ Optional tilting axes for full 5-axis machining
✅ Full integration support, including control wiring and custom fixtures
✅ World-class technical and customer service
Whether you're upgrading one machine or outfitting an entire production line, we help you integrate smarter, not harder.
Real-World Results from SilverCNC Customers
Success Story: Precision Job Shop – Illinois, USA
-Challenge: Slow production and inconsistent quality due to multiple setups
-Solution: Installed SilverCNC 4th axis rotary tables across their 3-axis machining centers
Results:
-Setup time per part cut by 50%
-Scrap rate reduced by 30%
-Overall productivity increased by 40%
-Return on investment achieved in under 6 months
This isn't just an equipment upgrade—it's a performance transformation.
Let Your Machining Center Do More
A standard 3-axis CNC machine is a powerful tool—but its true potential is often limited by the need for multiple setups and limited movement. By adding a rotary table for machining center operations, you transform your equipment into a more powerful, flexible, and fast-performing solution.
Frequently Asked Questions (FAQs)
❓ Is a rotary table only useful for 5-axis machining?
No! Even a 4th axis rotary table provides substantial benefits. It allows for indexing and multi-face machining without re-fixturing, significantly improving efficiency on 3-axis machines.
❓ Can I add a rotary table to my existing CNC machine?
Yes! SilverCNC rotary tables are designed for easy retrofitting to most 3-axis machining centers. We provide compatibility kits and integration support for seamless installation.
❓ What’s the difference between a servo-driven and manual rotary table?
Manual rotary tables require operator intervention for indexing, while servo-driven tables are CNC-controlled, fully automated, and offer precise repeatability. The latter is ideal for production environments where speed and accuracy are critical.
❓ Do rotary tables require a lot of maintenance?
Rotary tables are rugged, but regular lubrication, cleaning, and alignment checks will ensure long-lasting performance. SilverCNC provides maintenance guides and support with every product.
❓ How accurate are SilverCNC rotary tables?
Our tables offer indexing accuracy down to ±0.001° and repeatabilities of ±5 arc-seconds, depending on the model. These specs meet or exceed industry standards across high-precision applications.
