Best Cheap F4B Pcb is often the first question clients ask when they need reliable, low-loss antenna boards that fit tight budgets. When signal integrity and cost are both important in a market, it is possible to find the appropriate supplier. We justify the performance of F4BM materials, what they are solving and the importance of working with a reliable partner.
F4BM materials are at surface glance a composite of low dielectric loss of PTFE reinforced with glass fiber to produce a stable dielectric constant and high level performance at high frequencies. That is why they are the best choice in antenna PCBs, radar modules and high-power combiners where FR-4 is unable to perform. We are dedicated to the actual advantages and rational decisions.
Why choose F4BM for your antenna projects?
• Low dielectric constant (as low as 3.5) - keeps insertion loss minimal for RF paths.
• Stable Dk and good dimensional control - critical for tight impedance lines.
• Resistance to chemicals, moisture, and aging - suits outdoor and demanding environments.
• Options for copper foil and PIM performance - choose ED copper for general use or RTF-style foils for improved PIM when required.
Product description - F4BM antenna PCB and combiner boards

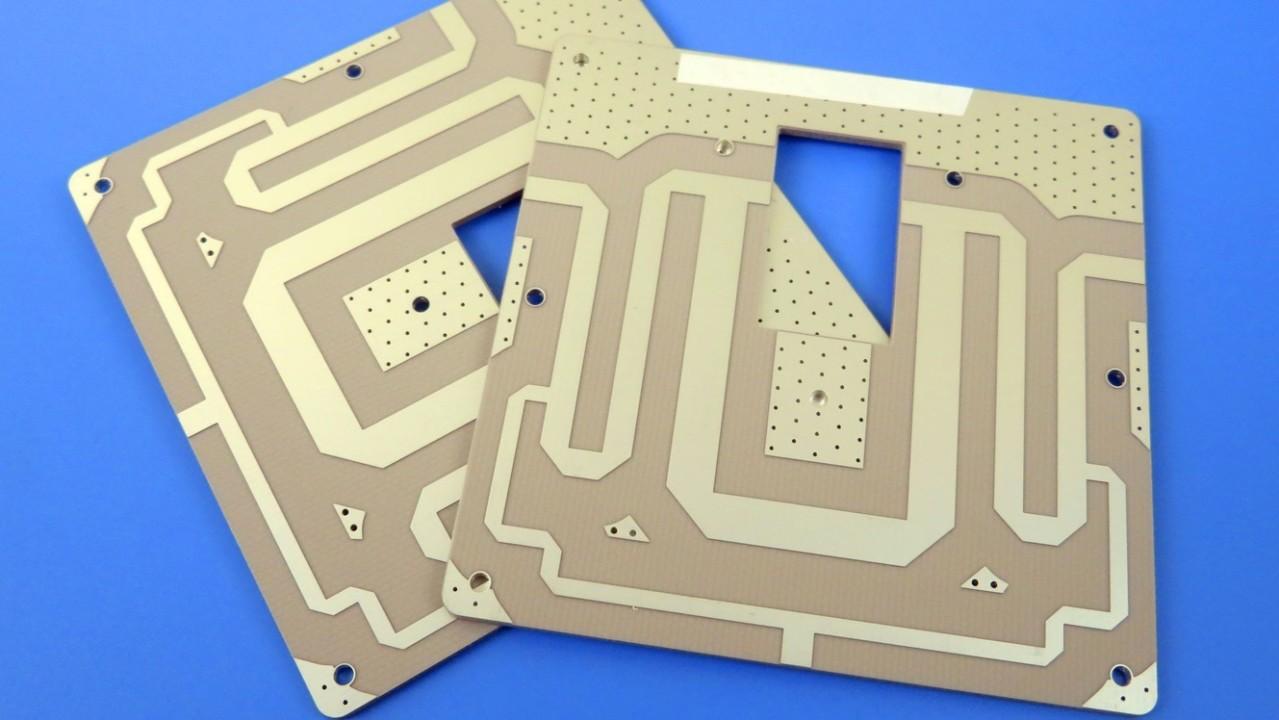

F4BM antenna PCB is a polymer compound based on PTFE, which has been reinforced with glass cloth to create a low loss factor as well as dimensional stability. Circuit boards like F4BM265 combiners, radar circuit boards are produced to work with high power and millimeter-wave frequencies. The F4BM265 Combiner Circuit Board allows the handling of power of considerable strength, and can be attached to flanged heatsinks with flange resistors to provide grounding and thermal regulation. F4BM-based hybrid multilayer PCBs are typically utilized in automotive radar sensors and telecom combiners where TCDk, moisture absorption and tight thickness constraints are important.
Common applications we support
• Mobile and fixed wireless antenna systems
• Combiner and splitter PCBs for indoor distribution systems
• Automotive radar sensors (60–77 GHz) and hybrid multilayer radar PCBs
• High-frequency amplifier combiners and power distribution boards
How we solve customer pain points
Some of the most common requests befall clients who want a board that will maintain signal loss to a low level, be affordable and will not bend or move with variations in temperature. In the case of those requirements, it is important to work with suppliers that specialise in cost-effective RF materials. That’s why many choose Cheap F4B Pcb Manufacturers who understand how to tune PTFE-to-glass ratios for the right Dk, and select copper foils matched to PIM and conductor-loss needs. We assist in defining the laminate, copper foil and stack-up that perform without throwing away money.
Design considerations (practical checklist)
-
Specify dielectric constant tolerance and TCDk for frequency stability.
-
Choose copper type: ED copper for standard use; reverse RTF foils for low PIM.
-
Control glass weave to manage thermal expansion and mechanical stability.
-
Test prototypes for insertion loss and VSWR across the intended band.
-
Plan thermal management-combine with proper heat sinking for high-power boards.
How to pick the right supplier
In the acquisition of boards, seek companies that integrate materials knowledge and manufacturing controls. Cheap F4B Pcb options vary widely; the difference is often in material consistency, process control, and the supplier’s RF test capabilities. Working with experienced Cheap F4B Pcb Manufacturers means fewer surprises at the prototype stage, clearer documentation, and faster time-to-deployment.
Key Takeaway
Cheap F4B PCB manufacturers can cut costs without sacrificing RF performance, but only when material choice, copper foil, and stack-up are matched to the application. When time or money is being wasted due to signal loss, PIM or thermal problems, then the correct F4BM laminate and an experienced partner will have the problems resolved in no time.
FAQs
Q: What is the range of frequency that F4BM laminates?
A: F4BM is compatible with low GHz up to millimeter-wave frequencies with an appropriate stack-up and choice of copper.
Q: What is the comparison between F4BM and FR-4 with antennas?
A: F4BM has many fewer dielectric losses and is much more dimensionally stable, so it is more suitable in RF and high-speed lines.
Q: Can F4BM be used in automotive radar?
A: Yes - hybrid multilayer F4BM PCBs are usually applied to radar sensors in 60 77 GHz where controlled Dk and TCDk are needed.
Buy It Today
Signal integrity and cost are important to your next RF project, talk with us to find out what materials and stack-up and prototyping choices. We assist in defining the appropriate F4BM solution and find trusted manufacturers. Get in touch now to begin a technical discussion.
