For CNC machining that requires accuracy, the quality of workholding is equally important as the cutting tool and the machine. With a pulldown chuck, a better hold of the workpiece while machining is achieved through both clamping and pulling functions of the chuck. For the manufacturers who are looking for an effective pulldown chuck manufacturer, the main thing is not only grip but also precise positioning and consistency in the process.

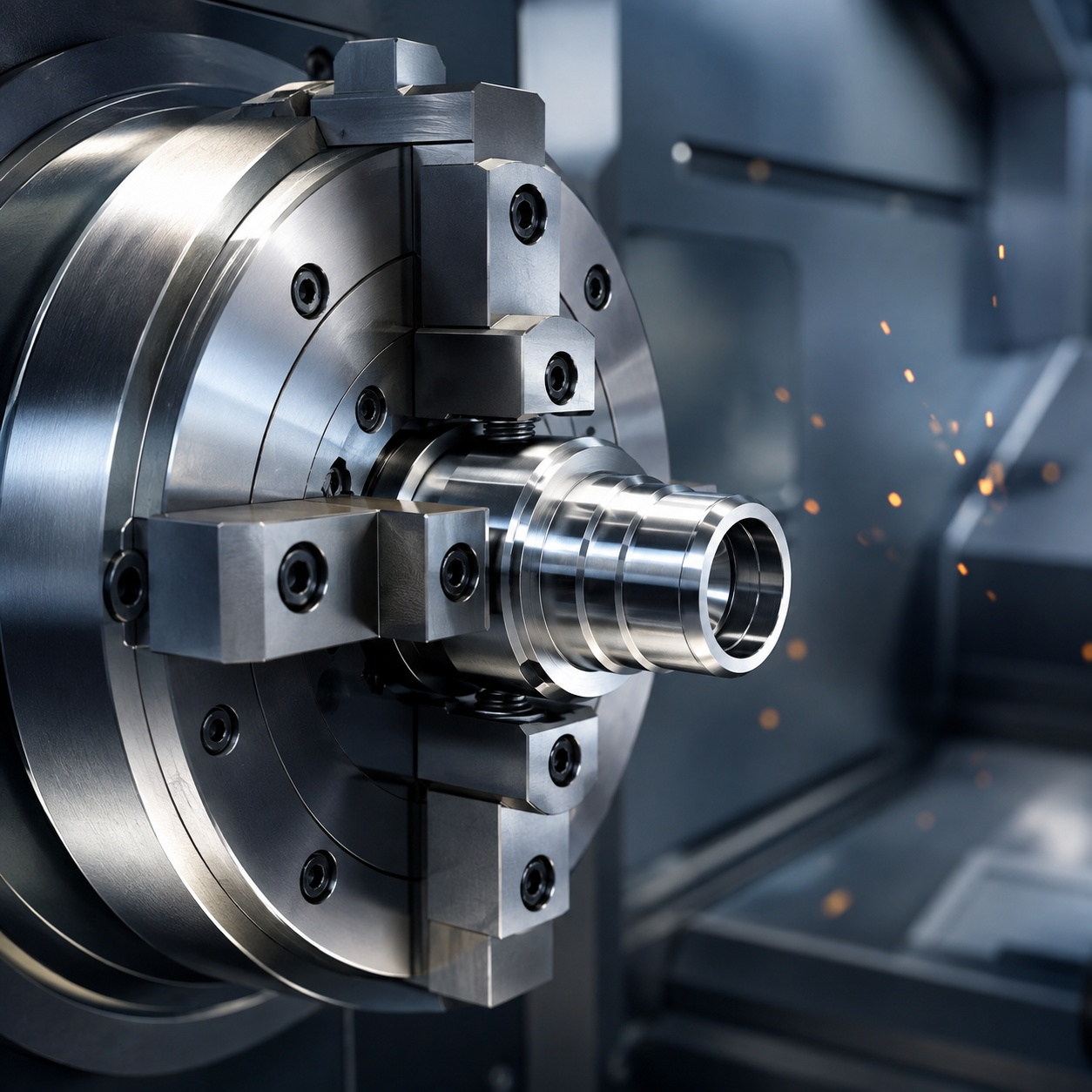

The PA-type pulldown chucks produced by Vishal Machine Tools are specifically designed to meet the criteria of workholding. These pulldown chucks use the chucking pins placed in three places to hold the workpiece while pulling it to the desired position. This reduces bending force on the workpiece and ensures high concentricity.
Accuracy of Work Holding in CNC Machining
It is necessary to note that a slight displacement of the component during CNC machining operations will result in loss of dimensional accuracy, deterioration of surface finish, and relative relationships between different machined surfaces. In addition, if the workpiece is not securely held, it may happen that a part will be technically correct according to the cutting program, but will not satisfy the necessary requirements.
In cases where several machining operations are made on one component, this aspect becomes especially significant, because a slight error of positioning will continue to exist through drilling, turning, boring, milling, and finishing operations. Work holding reduces this risk by holding the component in a predictable position.
Benefits of Using Pulldown Action for Component Positioning
The first benefit of using a pulldown chuck is associated with the fact that radial clamping is complemented by a pulling action. Instead of just securing the component from its sides, this mechanism tries to pull the component to some specific seating surface.
This factor is significant when it comes to maintaining the proper relationship of the workpiece to the chuck face or locating surface.
Improved Concentricity
Concentricity becomes an important aspect when the machined component is required to rotate precisely on the desired axis. Ineffective clamping may cause the component to move from the desired axis of rotation due to uneven clamping leading to runout.
The proper design of pulldown chuck makes it possible to maintain the position of the workpiece during the clamping process. According to Vishal Machine Tools, its PA-type design provides improved concentricity and efficient clamping.
Reducing Bending Stress While Clamping
Clamping can make the component bend as a result of the pressure applied during clamping. This can happen especially when machining relatively thin components that cannot sustain excessive clamping force or when the geometry of the component is delicate.
The problem of excessive bending can be solved using proper design of pulldown chucks by controlling how the component will be held in place. The PA-type chuck provided by Vishal Machine Tools places clamping pins at three different locations to reduce bending stress.
Better Squareness and Parallelism
Workholding accuracy should not only include positioning of the component. The orientation relative to the reference planes also matters.
In case of components with accurate end faces, pulldown clamping can help ensure that the workpiece sits snugly against the required reference plane. According to Vishal Machine Tools, its design allows for better squareness and parallelism relative to the standard end surface after machining.
This might prove especially useful when further processing requires a face previously machined.
Greater Jaw Movement Makes Setup Easier
Accuracy is an essential quality of any workholding device; however, a chuck must be practical in use. In most cases, operators deal with components of varying sizes, and limited jaw movement can complicate the setup process.
The larger jaw movement range enables better securing of components of various sizes. Vishal Machine Tools says that its PA-type pulldown chucks offer greater jaw moving capacity, hence better fixation of the workpiece. Sizes vary from 135 mm to 400 mm and there are two- and three-jaw designs available.
What to Look for When Choosing Pulldown Chuck Suppliers
The choice of a pulldown chuck is about much more than price or dimensions comparison. The chuck has an impact on the machining process repeatability; hence, it deserves thorough consideration when choosing one.
While comparing various pulldown chuck suppliers, consider such aspects as:
· Clamping mechanism and pulling mechanism
· Necessary dimensions of the workpiece
· Number of jaws or clamping points
· Repeatability and concentricity demands
· Jaw travel
· Maintenance and ease of spare parts replacement
· Customization possibilities
Often a supplier which understands the application will suggest more suitable configuration rather than just provide the standard pulldown chuck.
The Importance of Manufacturer's Experience
Each industry and each component have different requirements concerning workholding. A chuck which is perfect for a simple turning process will not fit the component which needs controlled seating and positioning during multiple operations.
That is why cooperation with an experienced pulldown chuck manufacturer and suppliers is recommended. A manufacturer which knows all ins and outs of the chuck construction will be able to analyze the component form, machining process, demands for accuracy, clamping setup, and manufacturing requirements.
Vishal Machine Tools manufactures workholding products since 1993 and claims that its pulldown chucks can be made with various diameters, materials, and shapes according to customers' demands.
Customization Can Help
All workholding devices do not have the same type of component to accommodate. The unusual shape of components, restricted grippable area, special locating requirements, and even automated assembly lines sometimes call for customization.
A custom pulldown chuck can be created to match the specific component, instead of trying to make the component fit the generic chuck. It can be more accessible for cutting tools, while at the same time providing all required positioning and clamping.
PA-type pulldown chucks are used as base chucks for the combination chucks in factory automation systems as per Vishal Machine Tools.
Maintenance and Replacement of Components
Even a precision chuck may underperform if not maintained properly. Chips, coolant build-up, wear, and damage to the clamping parts may slowly degrade the workpiece's ability to locate accurately.
The maintenance and cleaning of the chuck and locating surfaces are important, thus. It is also important to check the chucking pins, jaws, and other places of contact for signs of wear. One handy feature about the Vishal Machine Tools PA-type chuck is that the pins can be easily replaced from the front side.
Customization Can Work
Not all parts fit in an idealized workholding setup. There could be unusual shape, gripping challenges, special location considerations, or an assembly line process involved that may call for customization.
A customized pulldown chuck can be made based on the actual part rather than having the part conform to the design of the chuck. This will provide more tool access while meeting the necessary location and clamping requirements.
As per Vishal Machine Tools, the PA-type pulldown chuck is also used as the basic chuck in the combination chucks setups for factory automation purposes.
Maintenance and Part Replacement
A precision chuck may become a precision problem if not well-maintained. Chips, coolant contamination, wear, and worn out clamping parts may slowly begin affecting the consistency of the location of the workpiece.
Maintenance involves cleaning of the chuck and locating surfaces regularly. Operators should also keep an eye on the wear of chucking pins, jaws, and other contact surfaces. An advantage of the design by Vishal Machine Tools PA-type is that the chucking pins can be replaced from the front side easily.
Selecting the Appropriate Pulldown Chuck
The selection of the appropriate chuck depends on many factors including the component, operation being performed, production quantity, and required accuracy. A strong application would need a chuck with high clamping power. In case the application needs high accuracy, then the emphasis could be on repeat-ability, concentricity, and seat control.
Discussing the application with the manufacturer before the purchase can be useful since one can provide component drawings, dimensions, material details, machining operations, and accuracy specifications. This will enable the vendor to recommend the most appropriate design.
Conclusion
Pulldown chucks enhance CNC workholding accuracy since apart from holding the component, they pull the component and locate it to achieve better seating control and reduce movement.
For companies seeking to have reliable workholding devices, selecting an experienced pulldown chuck supplier makes a lot of difference to the consistency of their machining. With appropriate design, suitable sizing and maintenance, a pulldown chuck can be an essential component of the machining process. Vishal Machine Tools provides PA type pulldown chucks of various designs and sizes, as well as customized designs.
