Introduction

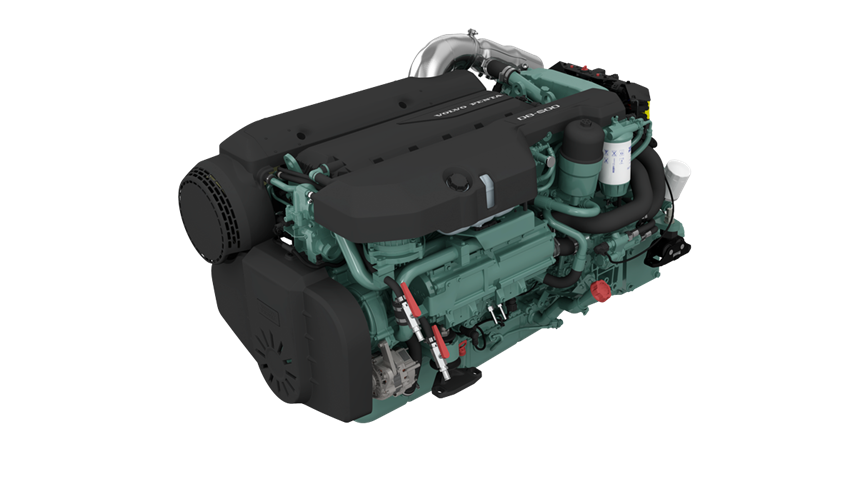

Inboard engines refer to marine propulsion systems where the engine is housed internally within the hull of the watercraft. It usually includes a transmission system that converts the rotational energy of the engine into thrust to propel the vessel through water. In this article, we will explore different types of engines, their basic components, and how they work.
Outboard vs Inboard Engines
The main types of marine engine configurations are outboard engines and inboard engines. Outboard engines are mounted externally on the transom at the rear of the boat. In contrast, these engines are fully enclosed inside the hull of the boat. Some key differences are that these engines tend to be more powerful than comparable outboard engines. They also allow for more interior space on the boat since there is no external engine. However, inboards require more complex installation and maintenance access compared to outboards.
Types
The most common types engines used in recreational and commercial marine vessels include:
Gasoline engines: Gasoline or petrol engines have been used in smaller pleasure craft and fishing boats for a long time due to their relatively low costs. However, they have higher emissions compared to other fuel types.
Diesel engines: Marine diesel engines are more fuel efficient and have better torque characteristics than gas engines. They are widely used in commercial vessels as well as some larger pleasure craft.
Sterndrive engines: Also known as inboard/outboard engines, sterndrives have the engine in the Stern connected to a drive unit and propeller assembly which can be tilted or rotated using hydraulic actuators. This provides advantages like shallow water operation.
Pod drives: Pod propulsion systems have the engine mounted inboard but with fixed propeller pods attached to the lower outside edge of the transom. Pods provide excellent maneuverability and can use diesel or gas engines.
Water jet engines: Water jet propulsion uses an impeller inside a pump housing to draw water from under the hull and accelerate it through a nozzle at the stern, providing thrust. It allows boats to operate in very shallow water.
Inboard Engine Components
Regardless of the specific type, all inboard marine engines share some common major internal components:
Cylinder block: The core component that houses the cylinders where combustion occurs.
Crankshaft: A rotating shaft that converts reciprocating motion of pistons to rotational motion to power accessories or drives.
Camshaft: Uses cam lobes to open and close intake/exhaust valves at precise timings.
Pistons: Move up and down within cylinders to intake, compress, combust, and exhaust air-fuel mixture.
connecting rods: Connect each piston to the crankshaft to transfer reciprocating motion.
Valvetrain: Includes valves, springs, cam followers that control air/fuel intake and exhaust.
Fuel system: Delivers precisely metered and pressurized fuel for combustion.
Ignition system: Provides spark to initiate combustion in gas engines using spark plugs.
Cooling system: Maintains optimal engine temperature using water jackets and a heat exchanger.
Lubrication system: Delivers oil under pressure to reduce friction between components.
Operation
All inboard engines operation follows the same four-stroke combustion cycle:
Intake stroke: Piston moves down, opening intake valve to draw air-fuel mixture into cylinder.
Compression stroke: Both valves close and piston compresses mixture before ignition.
Power stroke: Fuel ignites and burns, rapidly expanding gases to push piston down.
Exhaust stroke: Piston moves up, opening exhaust valve to push spent gases out.
The continuous repeating cycles power the crankshaft, which is connected to a transmission system. Inboards often use gearboxes that reduce engine rpm and increase torque for propeller rotation rates. Finally, the propeller converts rotary motion to water thrust for vessel propulsion.
Conclusion
In summary, inboard marine engines located internal to the watercraft hull provide power and thrust through various types. Their basic components work together through the principles of internal combustion to transform chemical energy into mechanical motion. Understanding these engines can help boat owners operate and maintain their vessels more effectively.
