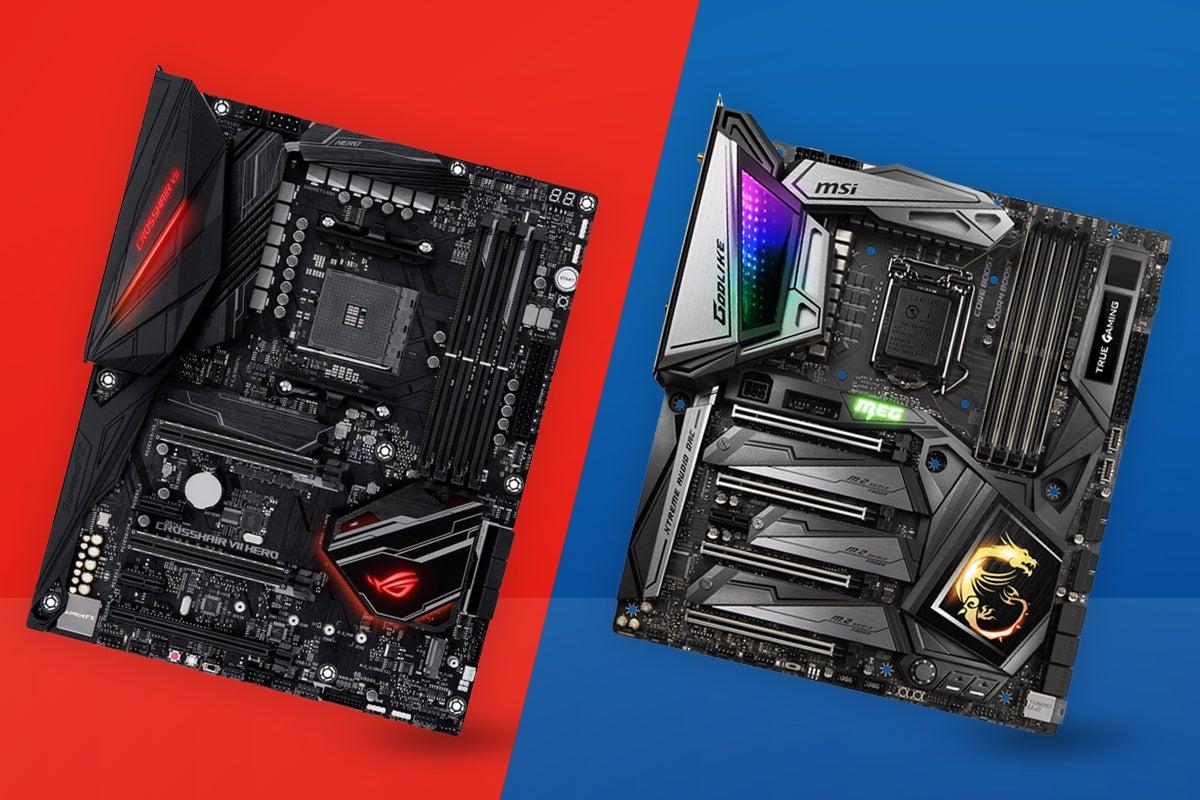

A manual on the motherboard and its numerous additives. After analyzing this article, you will get a honest idea approximately the motherboard and its diverse components. Before you buy a motherboard, you ought to decide which cpu you are going to shop for.
The Socket
The socket on the motherboard supports the cpu. Intel and AMD use extraordinary types of sockets. Intel makes use of Land Grid Array (LGA) and AMD uses Pin Grid Array (PGA). Socket 775 and socket 1156 are the maximum commonplace sockets for Intel processors (as of now). Socket 1156 is the present day one which cognitobytes gives aid to the middle series (i3,i5,i7) processors. Socket AM2+ and AM3 are the commonplace AMD sockets. AM3 is the modern version that offers assist to CPUs like Phenom II.
Bus pace
The front side Bus (FSB) is a gadget that connects the cpu to the northbridge. The northbridge contacts the memory (RAM) and other additives and passes the information to the cpu. the rate of the FSB performs a very essential position within the general performance of a computer. So pick a motherboard with a high speed FSB. this will permit you to install a quicker cpu in the future, if wanted. Overclocking is any other advantage which i'm not going to cowl here.
The Chipset
The north-bridge and the south-bridge together represent the chipset. The
north-bridge is the more crucial element as it's far extra concerned with the cpu. The chipset plays a main position inside the graphics performance of machines without portraits playing cards, because it comprises the IGP (incorporated/onboard photos processor). different capabilities consist of reminiscence controller (regulates conversation between the CPU and RAM), pix controller (handles communique among images card and CPU), onboard audio and so on. So try to buy a motherboard that has an awesome chipset. go to a producer's website and you will be able to find the chipset that fits your needs.
most part of the above paragraph does not keep true for the excessive cease models of middle series CPUs from Intel (i collection). The GPU (pix Processing Unit), reminiscence controller and the portraits controller are included the to CPU's die itself!
AMD had moved the reminiscence controller to the cpu die a long time in the past. however not anything a good deal has occurred since.
reminiscence Slots
it is into the reminiscence slot that you insert the RAM. DDR, DDR2 and DDR three are the 3 sorts of RAM which might be in use today and DDR3 is the fastest of them all. The sort of RAM which the motherboard makes use of can be specific inside the guide itself. A slot can be given simplest one sort of RAM. always cross for the motherboard that helps the trendy RAM module. No. of slots and max. reminiscence assist are the 2 different elements. That is not very relevant for a computing device consumer as maximum of the forums these days have as a minimum 4 slots and can assist a minimum of 4 GB which is extra than enough. in case you're a pro. gamer or any individual who frequently uses reminiscence intensive applications, you could don't forget these 2 factors also.
Peripheral Interfaces
As you realize, all the peripherals of a computer are related to
the motherboard. There are ports inside and outside the motherboard to which we connect the peripherals. different sorts of ports are defined beneath:
IDE port : predecessor of SATA port. Used for connecting optical drives,HDD.
SATA port: a lot quicker than PATA. used in all cutting-edge structures.
FDD port : Floppy disk drives aren't used anymore (normally) but many motherboards nevertheless include an FDD port. maybe for advanced users. but even bios flashing is just too smooth in recent times so you want now not fear approximately it.
USB port: usually used for connecting outside devices viz. pen drives, outside hdd, printers to the computer. USB 3.0 is the brand new. make sure which you buy a board that supports USB three.zero. it's about 10x faster than USB 2.0.
FireWire port: Very similar to USB, however gives better velocity (no longer on paper but in truth) and networking talents. nearly all the modern-day motherboards include a firewire (IEEE 1394) port.
other ones like parallel port, serial port and many others are preferred throughout all motherboards.
expansion slots
those are the array of slots placed on the south and imperative part of the board. you'll typically
see simplest 3 sorts of expansion slots theses days: PCI, PCI x1 express and PCI x16 specific slots. The PCI slot homes gadgets like LAN card, sound card etc., the PCI x1 express isn't typically used. positive tv tuner cards and pics use it. PCI x16 specific slot is used by pix cards. make certain that you have as a minimum PCI slots and one PCI x16 express slot for your motherboard.
producer's popularity
it's constantly higher to shop for a essential component like motherboard from a reputed manufacturer. Reliability and put up income provider are the primary motives. Gigabyte, ASUS, MSI and Intel are some of the main producers. if you ask me, i can usually suggest Gigabyte motherboards. They often upload beneficial functions to their motherboard. it is also the maximum stable motherboard out there.
final phrases
wish that I managed to cover nearly all the factors you want to recollect at the same time as buying a motherboard. an awesome motherboard on my own can not make a wonderful fast system. it's a mixed work. CPU, RAM and hard Disk are the 3 different essential individuals of the community. ensure that the alternative three also are in exact situation.
