ASME B16.9 Buttwelding Fittings

ASME B16.9 Buttwelding Fittings are pipe fittings that are welded onto the end of pipes to create a permanent, seamless connection. These fittings are manufactured to meet the ASME B16.9 standard, which specifies the dimensions, tolerances, materials, and markings for factory-made buttwelding fittings used in high-pressure and high-temperature environments.

ASME B16.9 Buttwelding Fittings are essential components in modern piping systems, ensuring robust and leak-proof connections in various industrial applications. These fittings are designed to facilitate the change in direction, branch connections, or the diameter of pipelines, adhering to the stringent specifications set forth by the American Society of Mechanical Engineers (ASME).



Types of ASME B16.9 Buttwelding Fittings

Here are some common types of ASME B16.9 Buttwelding Fittings:

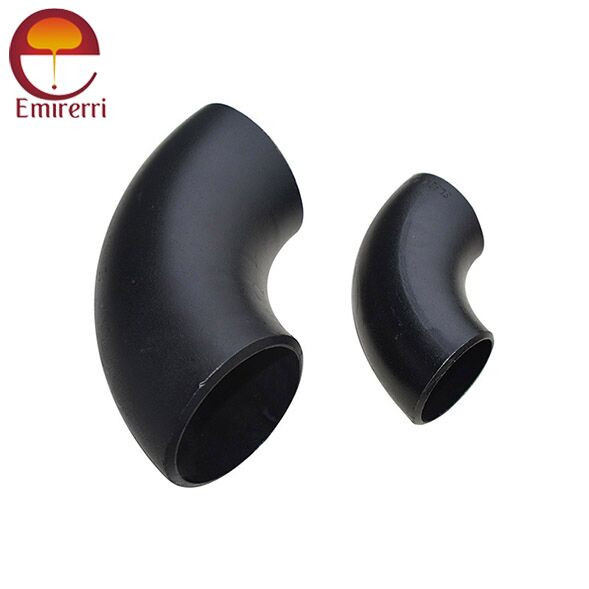

1. ASME B16.9 Elbows

Elbows are used to change the direction of the pipeline. They come in two primary angles:

• 90-degree Elbows: Used for a right-angle turn.
• 45-degree Elbows: Used for a smoother, less abrupt change in direction.

2. ASME B16.9 Tees

Tees are used to create branch connections. Types include:

• Equal Tees: The branch diameter is the same as the main pipe.
• Reducing Tees: The branch diameter is smaller than the main pipe.

3. ASME B16.9 Reducers

Reducers are used to connect pipes of different diameters. Two main types are:



• Concentric Reducers: Symmetrical, with the centerline of the pipe maintained.
• Eccentric Reducers: Offset to prevent air pockets in horizontal pipelines.

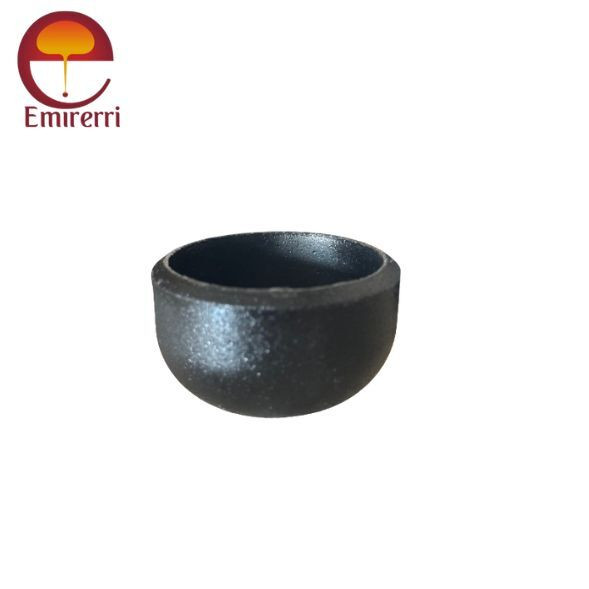

4. ASME B16.9 Caps

Caps are used to seal the end of a pipeline, preventing the flow of fluid or gas.



5. ASME B16.9 Crosses

Cross fittings create four-way branch connections.

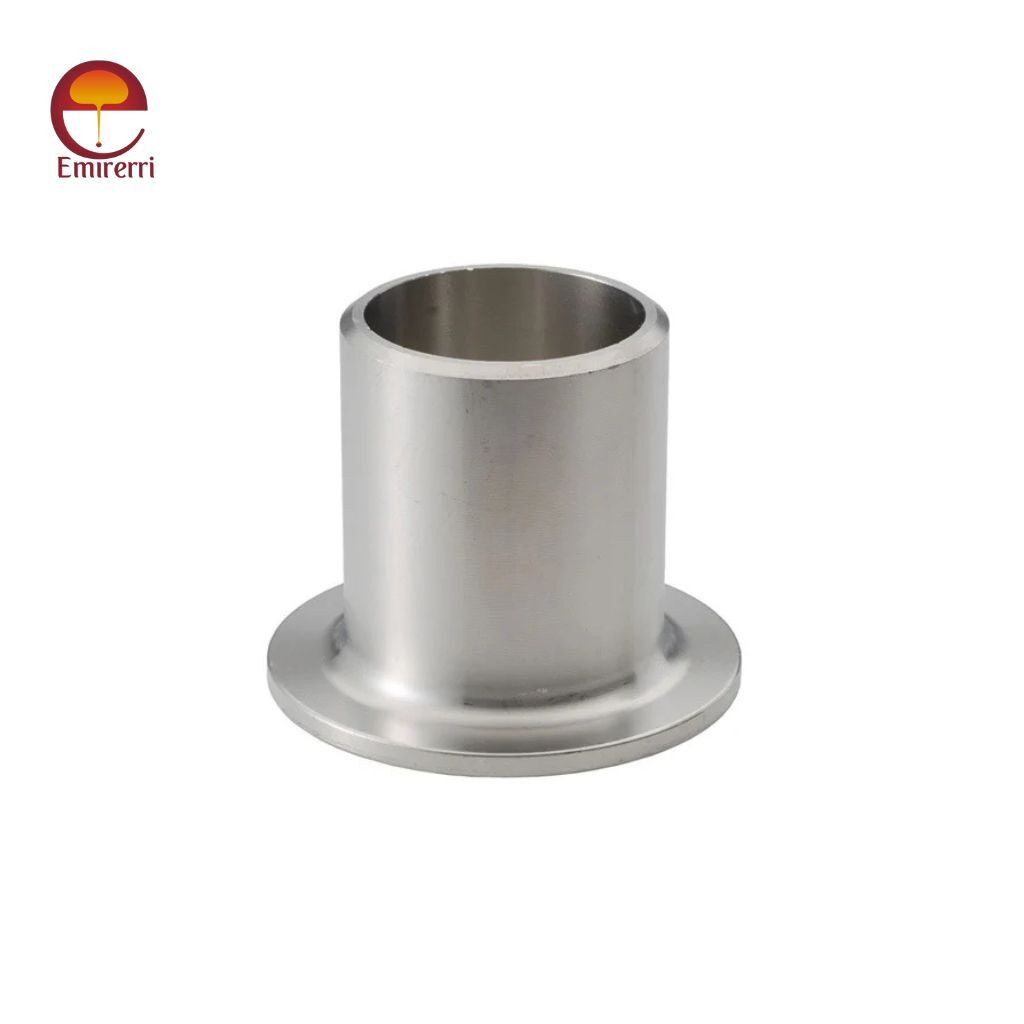

6. ASME B16.9 Stub Ends

Stub ends are used with lap joint flanges for pipelines requiring frequent dismantling.



7. ASME B16.9 Bends

Bends offer gradual changes in pipeline direction and are often custom-made for specific applications.

Key Features of ASME B16.9 Buttwelding Fittings

1. High Strength: Fabricated from durable materials like carbon steel, stainless steel, alloy steel, and nickel alloys.
2. Leak-Proof Connections: Seamless welding ensures robust connections, minimizing the risk of leaks.
3. Corrosion Resistance: Material selection ensures suitability for corrosive environments.
4. Dimensional Accuracy: Adherence to ASME B16.9 standards ensures compatibility across systems.
5. Wide Range of Sizes: Available in sizes ranging from 1/2” to 48” or more, accommodating various industrial requirements.

Applications of ASME B16.9 Buttwelding Fittings

ASME B16.9 Buttwelding Fittings are indispensable in industries where safety, efficiency, and durability are paramount. Common applications include:

• Oil and Gas Industry: Used in refining, processing, and transporting hydrocarbons.
• Petrochemical Plants: Suitable for handling aggressive chemicals.
• Power Plants: Essential in high-temperature and high-pressure steam pipelines.
• Water Treatment: Used in pipelines for water distribution and wastewater management.
• Pharmaceutical Industry: Preferred for hygienic and clean piping systems.
• Shipbuilding: Ideal for high-performance pipelines on vessels.

Material Options for ASME B16.9 Buttwelding Fittings

1. Carbon Steel: Widely used for its strength and cost-effectiveness.
2. Stainless Steel: Offers superior corrosion resistance and aesthetic appeal.
3. Alloy Steel: Provides enhanced strength and durability for demanding applications.
4. Nickel Alloys: Exceptional resistance to heat and corrosion, suitable for extreme conditions.
5. Duplex and Super Duplex Stainless Steel: Combines high strength with excellent resistance to stress corrosion cracking.

Advantages of ASME B16.9 Buttwelding Fittings

• Long-Term Reliability: Welded joints ensure structural integrity and resistance to wear and tear.
• Cost Efficiency: Reduces the need for frequent maintenance and replacement.
• Customizable: Available in various shapes and sizes to suit specific project requirements.
• Enhanced Flow Dynamics: Smooth interior surface minimizes turbulence and pressure drop.
• Versatility: Suitable for a wide range of temperatures, pressures, and environments.

Manufacturing Process of ASME B16.9 Buttwelding Fittings

The production of these fittings involves multiple stages to ensure quality and compliance:

1. Material Selection: Raw materials are chosen based on the intended application and required properties.
2. Forming: Processes like hot forging, extrusion, and cold forming shape the material into the desired fitting.
3. Heat Treatment: Applied to enhance mechanical properties and relieve stresses.
4. Machining: Ensures precise dimensions and tolerances.
5. Inspection and Testing: Includes non-destructive tests (NDT), dimensional checks, and hydrostatic tests to verify quality.
6. Surface Treatment: Includes polishing or coating for improved corrosion resistance and aesthetics.

Quality Standards and Testing

ASME B16.9 Buttwelding Fittings undergo rigorous quality checks to ensure they meet industry standards. Common tests include:

• Hydrostatic Testing: Verifies the fitting’s ability to withstand pressure.
• Radiographic Testing: Detects internal flaws in welds.
• Ultrasonic Testing: Ensures the integrity of the material.
• Hardness Testing: Confirms material hardness for specific applications.
• Dimensional Inspection: Ensures adherence to ASME B16.9 specifications.

Marking and Documentation

Each ASME B16.9 Buttwelding Fitting is marked with essential details, including:

• Manufacturer’s name or logo
• Material grade
• Nominal size
• Schedule or wall thickness
• Heat number
• ASME B16.9 designation

Proper documentation, including material test certificates (MTC), is provided to ensure traceability and compliance.

Installation of ASME B16.9 Buttwelding Fittings

Proper installation is crucial for the performance and safety of the pipeline. Key steps include:

1. Preparation: Clean the pipe ends and fittings to remove debris or contaminants.
2. Alignment: Ensure proper alignment to prevent misfit and stress on the weld.
3. Welding: Employ qualified welders and appropriate welding techniques.
4. Inspection: Conduct post-weld inspections to ensure joint integrity.
5. Testing: Perform pressure tests to verify the connection’s durability and leak-proof performance.

Choosing the Right ASME B16.9 Buttwelding Fittings

When selecting fittings, consider the following factors:

• Application Requirements: Pressure, temperature, and flow conditions.
• Material Compatibility: Match the fitting material with the pipeline and transported fluid.
• Size and Schedule: Ensure the fitting’s dimensions align with the pipeline.
• Standards Compliance: Verify adherence to ASME B16.9 specifications.

Conclusion

ASME B16.9 Buttwelding Fittings are integral to constructing reliable and efficient piping systems. Their versatility, strength, and adherence to stringent quality standards make them indispensable across industries. Whether designing a high-pressure oil pipeline or a hygienic pharmaceutical system, choosing the right buttwelding fittings ensures operational safety and efficiency.

Investing in high-quality ASME B16.9 Buttwelding Fittings guarantees durability and enhances your piping system's overall performance. Partner with reputable manufacturers and suppliers to ensure your fittings meet the highest standards of quality and reliability.
